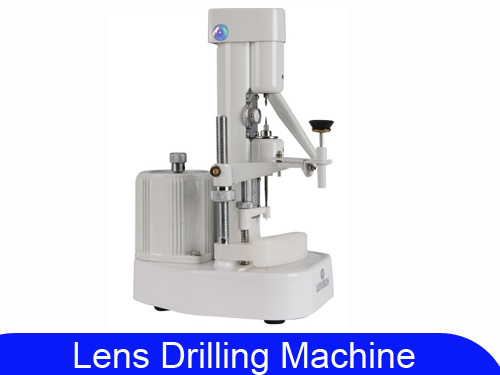

| Lens Drilling machine |
| Item: NH-3 |
|
|
|
|
|
| Product Details |
|

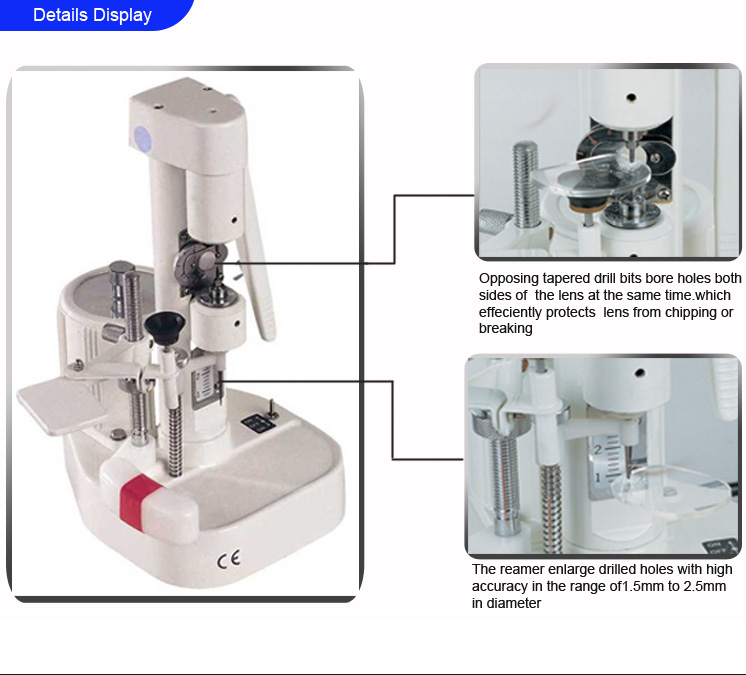

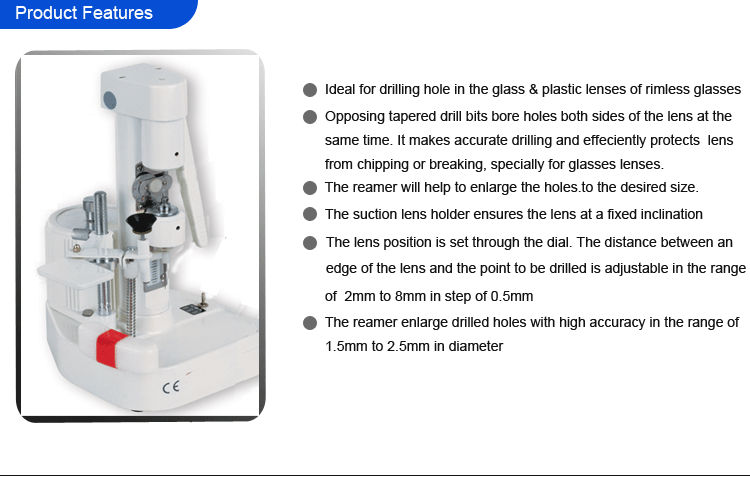

- This lens drilling machine is ideal for drilling hole in the glass & plastic lenses of rimless glasses. Opposing tapered drill bits bore holes both sides of the lens at thesame time. It makes accurate drilling and effeciently protects lens from chipping or breaking, specially for glasses lenses.The lens position is set through the dial. The distance between an edge of the lens and the point to be drilled is adjustable in the range of 2mm to 8mm in step of 0.5mm.The reamer enlarge drilled holes with high accuracy in the range of 1.5mm to 2.5mm in diameter. The suction lens holder ensures the lens at a fixed inclination
|
|
|
|
